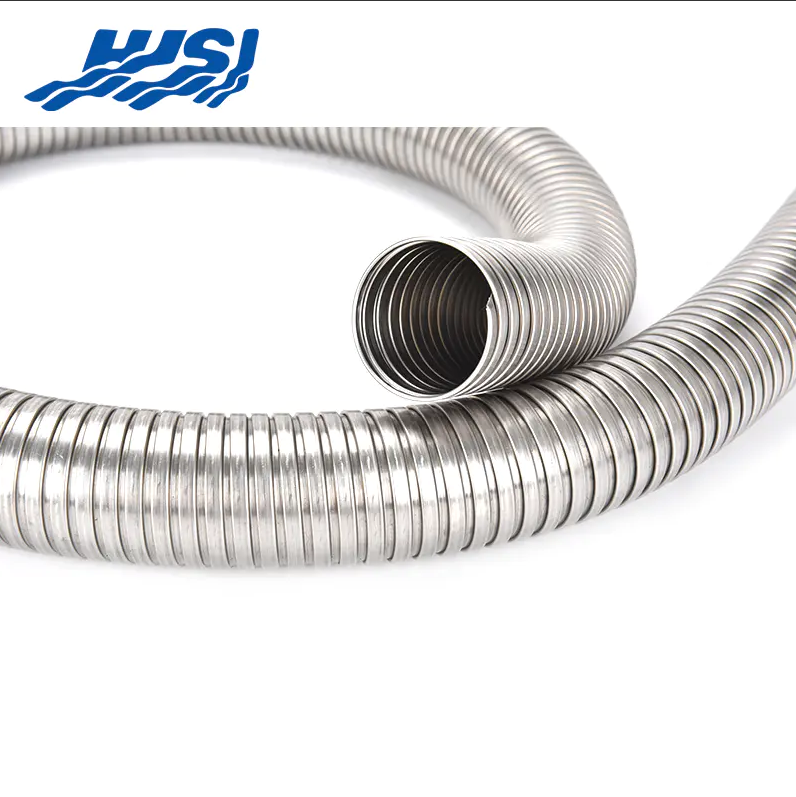

Flexible Steel Conduit offers a dependable method for protecting electrical wiring in environments that call for both routing flexibility and a reasonable degree of physical durability. The product consists of steel formed into a continuous spiral, creating a tube capable of bending around obstacles, absorbing movement, and resisting certain levels of mechanical stress without developing permanent damage or openings.
This type of conduit appears frequently in commercial facilities, industrial plants, construction projects, and infrastructure work where wiring must follow irregular paths, accommodate equipment vibration, or endure occasional contact with tools and materials. It provides a practical alternative when rigid metal conduit proves too inflexible for the layout and non-metallic flexible conduit lacks sufficient toughness for the conditions present.
The fundamental structure relies on a narrow steel strip rolled into a helical shape. Each turn interlocks with the next, forming a continuous enclosure that stays intact during normal bending and twisting. The spiral geometry allows the inner side of a curve to shorten slightly while the outer side lengthens, enabling the conduit to follow complex routes without kinking or separating at the seams.
Steel supplies inherent resistance to crushing and penetration, while the interlocking design distributes stress evenly along the length. Some versions include an additional outer layer of flexible polymer material that bonds to the metal core, adding protection against liquids, certain chemicals, and surface abrasion without greatly restricting the ability to bend.
Production begins with steel strip of controlled width and thickness. The material typically receives a zinc-based surface treatment before winding to reduce the risk of rust in environments where moisture or humidity appears from time to time. The strip passes through forming rollers that shape it into a profile with edges designed to hook together securely as the helix advances.
The winding machine maintains consistent overlap and tension so that each interlocking joint remains tight under flexing or compression. This uniformity helps prevent gaps that could allow dust, water droplets, or foreign objects to reach the interior. Wall thickness influences both bending ease and load-bearing capacity; thinner profiles suit applications requiring frequent manual adjustment, while thicker ones handle heavier mechanical loads.
After winding, the conduit undergoes inspection for seam integrity and dimensional accuracy. In versions with an outer jacket, an extrusion process applies the polymer layer under controlled heat and pressure, ensuring adhesion across the entire surface, including the raised spiral ridges. The jacket material remains pliable at typical installation temperatures and resists cracking during repeated bending cycles.
Interior surfaces receive attention to reduce friction during wire pulling. A light coating or polishing step creates a smoother path, allowing cables to travel longer distances with less force and lower risk of insulation abrasion. End cuts stay clean and square to mate properly with fittings.
Fittings designed for this conduit type usually feature threaded or clamp-style connections that grip the outer surface or engage the helical form directly. These components secure the conduit to enclosures, panels, or other conduit sections while preserving electrical continuity where grounding matters.
Industrial workspaces expose wiring to various forms of physical contact. Dropped tools, moving carts, shifting pallets, or foot traffic can strike unprotected cables or lightly shielded runs. Flexible steel conduit withstands these incidents better than many alternatives because the metal core absorbs and distributes impact energy.
When compared with flexible plastic conduit, the steel version shows less tendency to crack, split, or collapse under similar forces. Plastic materials deform more readily and, once compromised, offer reduced protection against further damage or environmental entry. Steel conduit, even after moderate impact, generally retains its tubular shape and continues to enclose the wiring.
Vibration represents a common challenge in facilities with rotating machinery, reciprocating pumps, or transport equipment. Constant oscillation fatigues some materials over time, leading to hairline fractures or loosening at connection points. The helical steel design flexes elastically, spreading vibrational energy along its length rather than concentrating it. This characteristic supports longer service in dynamic settings.
In applications involving portable equipment, adjustable workstations, or machinery that requires periodic repositioning, the conduit adapts to new configurations. Installers can reroute sections by hand, avoiding the need to replace long runs or add multiple fittings.
| Challenge / Application | Problem in Other Materials | How Flexible Steel Conduit Performs | Key Benefit |
|---|---|---|---|
| Vibration from rotating machinery, pumps, transport equipment | Fatigue → hairline fractures, loosened connections | Elastic flexing spreads energy along entire length | Longer service life in dynamic settings |
| Portable equipment, adjustable workstations, periodic repositioning | Limited adaptability, frequent replacement needed | Hand-reroutable sections, no need for extensive fittings or full replacement | Easy reconfiguration, reduced labor & material use |
Steel conduit performs consistently across a range of operating temperatures. In areas near heat sources—such as ovens, furnaces, engines, or densely packed lighting fixtures—it maintains shape and protective function without softening or deforming. This stability helps keep conductors insulated and separated even when ambient conditions rise.
At lower temperatures, the material retains sufficient flexibility for installation and adjustment. Unlike some non-metallic options that stiffen noticeably in cold conditions, steel conduit remains workable within typical handling ranges.
During fire events or high-heat incidents, the metallic construction resists ignition and contributes to containing electrical faults for a period. This behavior aids in preserving circuit integrity for lighting, alarms, or control systems until responders arrive or shutdown sequences complete.
Steel oxidizes when exposed to water, oxygen, and certain contaminants over extended periods. To limit this reaction, the galvanizing process deposits a zinc layer that acts as a barrier and provides sacrificial protection if scratches occur.
For locations involving more aggressive substances—such as industrial cleaning solutions, oils, mild acids, or airborne vapors—an outer polymer jacket creates an additional shield. The jacket prevents direct contact between the steel and the environment while remaining flexible enough to follow bends without splitting or delaminating.
In coastal regions, processing plants handling corrosive liquids, or facilities with frequent wash-down procedures, the combined galvanizing and jacketing approach extends usable life. Surface treatments stay bonded during normal flexing, reducing the need for supplemental wraps or coatings applied after installation.
Routine visual examinations detect early signs of wear on the outer layer. Where damage appears limited, localized repair maintains overall integrity without replacing entire sections.
Flexible steel conduit finds use in a variety of settings where electrical wiring needs shielding from physical contact, vibration, or environmental factors while allowing for adaptable routing.
In manufacturing plants, it carries power and control cables alongside production equipment. Assembly lines with moving parts, robotic workstations, and automated material transport create constant motion and the chance of incidental bumps. The conduit follows these layouts closely, bending to match machine contours and guarding wires against wear from rubbing or compression.
Chemical processing areas direct wiring past tanks, mixers, transfer pumps, and extensive pipe runs. Jacketed conduit handles occasional vapor contact, minor liquid exposure, and routine cleaning with strong detergents. Its exterior stays straightforward to wipe down, meeting cleanliness expectations in controlled production spaces.
Pharmaceutical and food-related operations apply similar conduit to protect circuits in zones with frequent wash cycles and sterilization steps. The surface resists breakdown from sanitizing solutions, and the flexible form eases routing through equipment clusters or clean zones without creating tight stress points.
Mining sites and quarries expose wiring to airborne particles, heavy shaking from drills or loaders, and strikes from loose rock or tools. Conduit here shields instrumentation lines for conveyor belts, crushing units, and loading stations, flexing with equipment shifts while blocking dust entry and impact damage.
Bulk handling facilities dealing with aggregates, grains, or powders use it for similar reasons. Vibration from screens, elevators, and hoppers tests connections, but the steel construction maintains cable coverage through repeated cycles.
Energy plants route wiring near turbines, boilers, compressors, and electrical gear. Heat from operating components combines with vibration, so the conduit accommodates expansion movements and provides a stable barrier around critical conductors.
Transportation support structures—rail maintenance shops, depot yards, airport ground equipment areas—protect lighting runs, signal wiring, and data lines. Structural settling, vehicle traffic, or wind loads introduce motion; the conduit adjusts without losing its protective shape.
Commercial structures place it in utility rooms, service corridors, and workshops. HVAC units, pumps, and other building systems produce low-level vibration, and the conduit allows easy adjustments when technicians service or relocate gear.
Institutional facilities like schools, hospitals, or labs apply it where equipment changes occur regularly. Flexibility supports quick rerouting during upgrades or space reconfigurations without major rework.
Effective setup starts with thoughtful path selection. Mapping the route ahead identifies barriers, clearance needs, and anchor points, helping limit severe angles that strain the conduit or wires inside.
Anchors secure the conduit at regular spacing to counter droop while permitting slight give from thermal changes or vibration. Straps or brackets hold without flattening the spiral profile.
Curves form by hand for gentle sweeps or assisted tools for narrower turns. Keeping bends gradual preserves an open channel for cable movement and avoids sharp creases that could pinch insulation.
Extra length at ends allows for minor repositioning later or accounts for settling. Pulling wires goes smoother thanks to the interior finish; a thin lubricant reduces drag on longer stretches or denser conductor bundles.
Connectors attach with measured tightening to lock firmly yet avoid gouging the surface. Grounding depends on solid metal interfaces, supplemented by jumpers when regulations call for it.
Wet zones require sealed connectors paired with jacketed conduit to block water at transitions and terminations.
Routine checks spot loose attachments, dents, or early corrosion traces. Wiping away grit, oil films, or chemical traces prevents buildup that traps moisture or speeds degradation.
Section replacement handles localized harm by cutting out the affected part and linking in fresh conduit with matching couplings. This targeted fix keeps interruptions short compared to full system takedowns.
Service length ties to exposure intensity and mechanical demands. Solid anchoring, appropriate conductor fill, and secure joints help achieve steady performance over years.
Bend capability cuts down on directional fittings. Reduced connections trim expenses, streamline grounding, and shrink potential weak links.
During building updates or additions, conduit shifts to follow new layouts with limited cutting or splicing. This suits operations that adjust configurations periodically.
Wire placement flows better in layouts favoring broad arcs over segmented straight pieces joined frequently.
Shielding conductors from knocks, shaking fatigue, or outside intrusion lowers failure rates tied to those causes. Reduced stoppages aid ongoing output or service flow.
The steel frame offers a grounding pathway, speeding fault clearing and cutting shock risks. Correct placement meets code standards for ordinary and select restricted zones.
Extended intervals between replacements curb material turnover. Salvaged pieces from changes often reinstall elsewhere in the same site.
Production recycles steel remnants and applies coatings precisely to cut excess. Matching conduit grade to site demands prevents overbuilt choices.
| Aspect | Key Benefit / Practice | Outcome / Advantage |
|---|---|---|
| Replacement Frequency | Extended service intervals | Reduces material turnover and consumption |
| Reusability | Salvaged sections reinstalled on-site | Minimizes waste during modifications |
| Manufacturing Practices | Recycles steel remnants; applies coatings precisely | Lowers excess material use and waste |
| Product Selection | Matches conduit grade to actual site requirements | Avoids over-specification and unnecessary cost/resource use |
Greater weight than plastic equivalents needs mindful carrying and bracing for raised runs. Group efforts or staging aids ease overhead tasks.
Tight quarters call for precise planning to respect bend limits. Brief cold snaps lessen pliability; warming the material beforehand restores workable range.
Connector matching confirms tight, sealed joins where essential.
Flexible steel conduit stands as a practical and enduring solution for protecting electrical wiring across demanding environments. Its helical steel design delivers reliable mechanical strength and adaptability, allowing it to navigate complex paths, absorb vibration, and resist impacts where rigid alternatives fall short and non-metallic options may prove inadequate.
With protective coatings and optional jacketing, it addresses corrosion, chemical exposure, temperature shifts, and moisture concerns effectively, supporting safe and organized installations in manufacturing lines, chemical facilities, mining operations, energy plants, transportation infrastructure, and commercial buildings alike. Through straightforward installation methods, routine maintenance, and inherent grounding capability, it contributes to reduced downtime, fewer failures, and extended system reliability while aligning with efficient resource practices.
As industries continue to face evolving operational stresses and safety expectations, flexible steel conduit provides a balanced choice that combines durability with routing versatility, helping maintain electrical integrity in real-world conditions over the long term.
